Capacity 1.5 HP Compact Size Model FWE12MW Cooling Capacity (kJ/h) 12980 Rated Input (W) 1150 EER (Energy Efficiency Ratio) 11.3 Approx Area Capacity (sqm) 23-28 sqm Power Supply (V,Hz,Ph) 220-230V,60Hz,1Ph Refrigerant Type R32 Product Dimensions WxDxH (mm) 585x450x346 Packaging Dimensions WxDxH (mm) 505x640x435 Net/Gross Weight (kg) 32/35.0

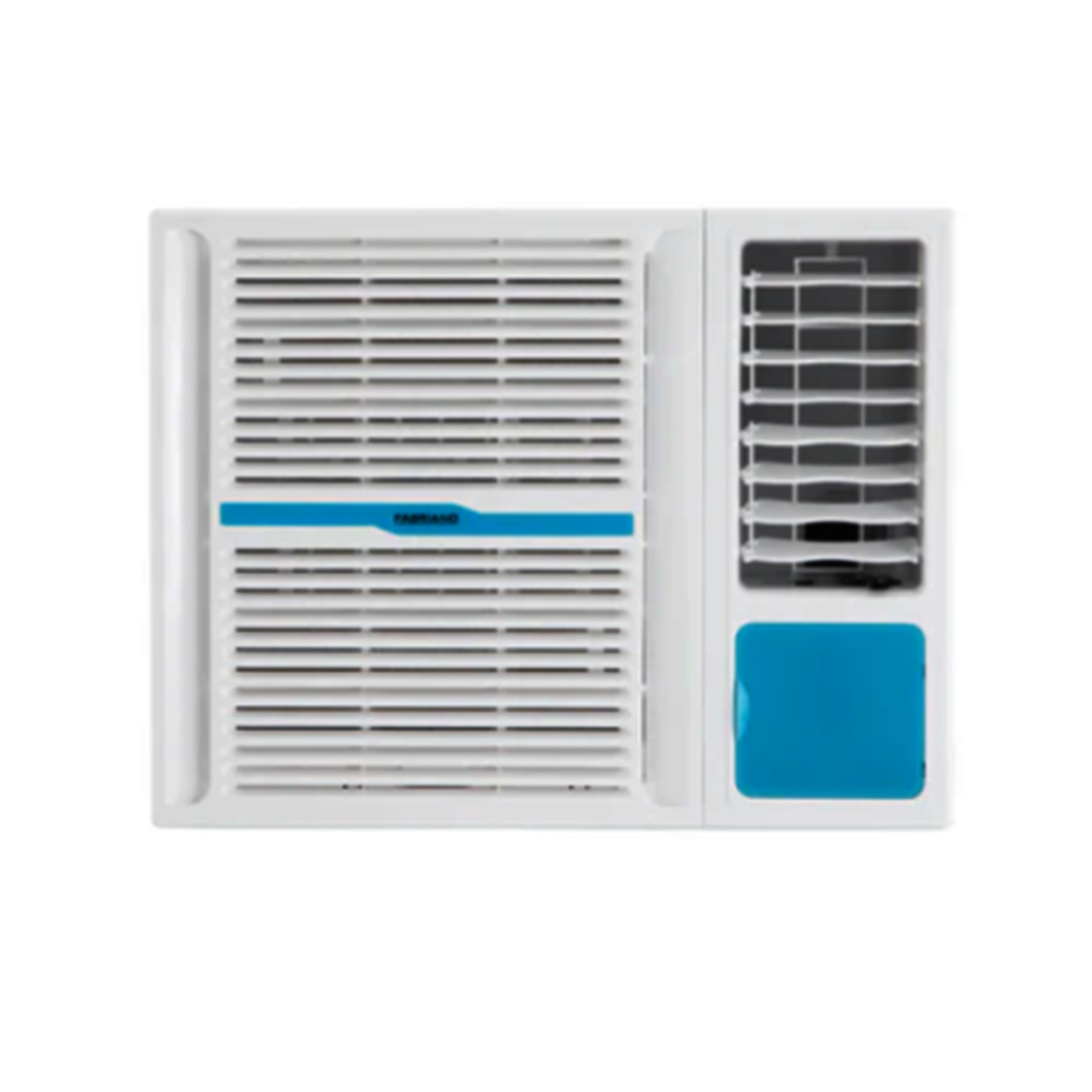

The FWE12MW is a 1.5 HP compact air conditioner that uses R32 refrigerant. It delivers a cooling capacity of 12,980 kJ/h with a rated input of 1,150 W, providing an energy efficiency ratio (EER) of 11.3. This unit is suitable for rooms of approximately 23–28 sqm and operates on a 220–230 V, 60 Hz, single-phase power supply.
