Model Unit FSE30TWI Cooling Capacity Kj/h 31200<6480~33120> kj/h Power Input (W) W 2630 (400-3250) Rated Power Input (W) W 2630 EER (Energy Efficiency Ratio) 11.9 (16.2-10.1) kj/h Approx Area Capacity Sqm 56-69 Refrigerant Type R410a Power Supply (V,PH,Hz) V,PH,Hz 230V, 6o Hz Product Dimensions (WxDxH) mm mm 1186*340*258 Packaging Dimensions (W*D*H) mm mm 1262*420*337 Net/ Gross Weight kg kg 17/41

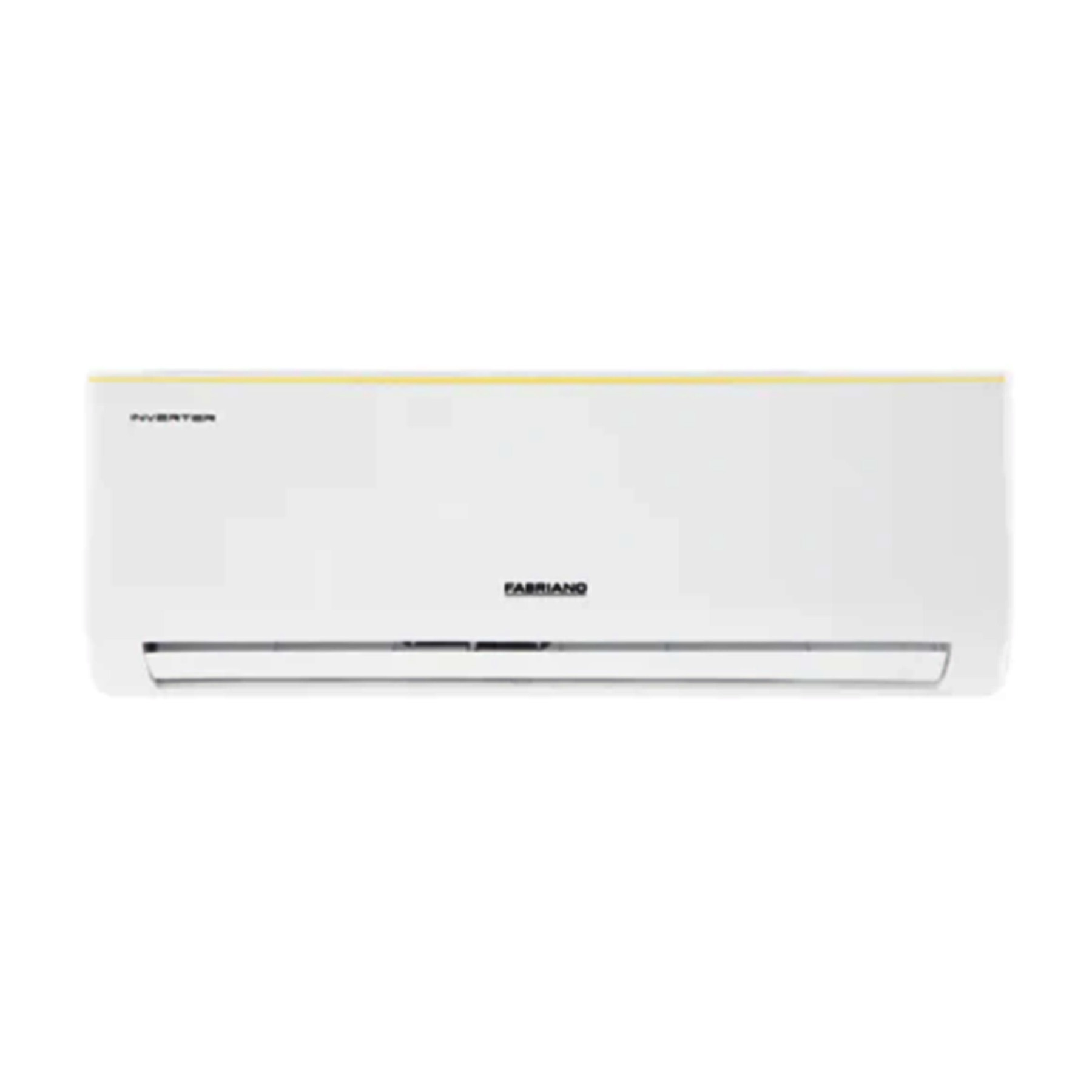

The Fabriano FSE30TWI is a 3 HP inverter split‑type air conditioner designed to cool medium to large rooms with efficient performance. It delivers a cooling capacity of approximately 31,200 kJ/h and uses R410a refrigerant, providing a high Energy Efficiency Ratio (EER) of around 11.9. The unit supports an approximate area capacity of 56–69 m² and has a rated power input of about 2630 W. Key features include inverter technology for energy‑efficient operation, auto restart, turbo/cool mode, dry mode, a 24‑hour timer, sleep mode, and a 4‑directional louver for even air distribution. It also comes with a remote control with holder, an LCD display, and blue fin evaporator protection, and typically includes an installation kit.
Energy-Saving / Eco Mode / Inverter / Turbo Mode
Unit Service Manual
